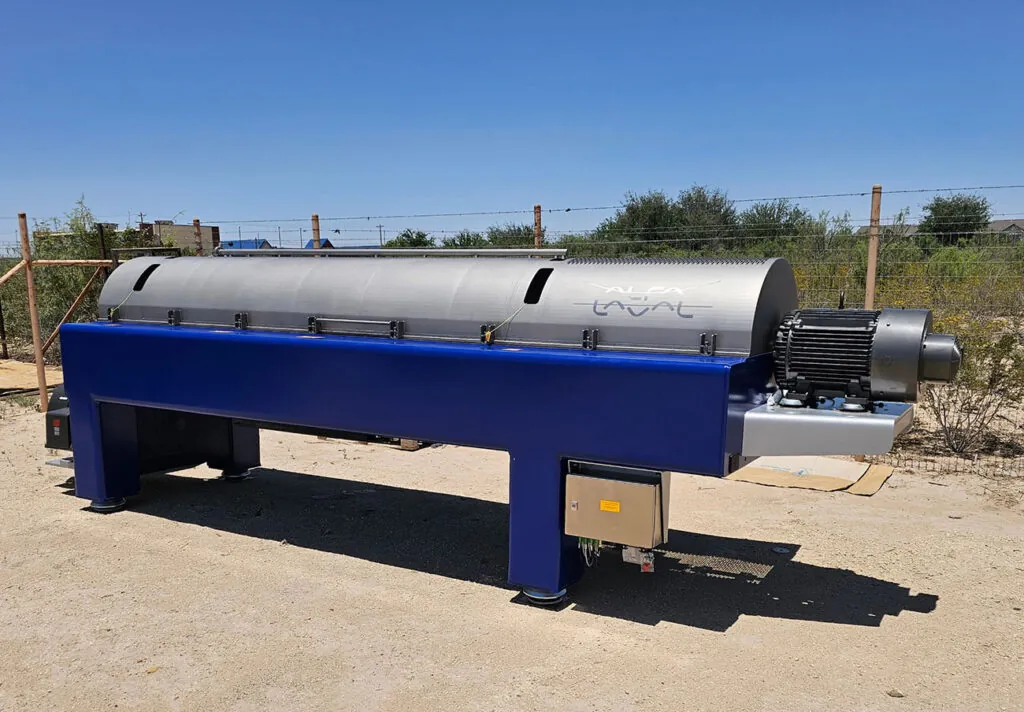

Our expert team understands the ins and outs of fluid and solid separation processes, allowing us to bring together the right centrifuge configuration for any application. Review the Lynx 65 Three-Phase Technical Specifications below to see if it’s the right fit for your needs.
| Typical solids capacity | 20 t/h |
|---|---|
| Bowl diameter | 650 mm / 25.6 inches |
| Bowl speed (maximum) | 3100 rpm |
| G-force (maximum) | 3491 G |
| Gross weight | 6500 kg / 14300 lbs. |
| Length (L) | 6452 mm / 255 inches |
| Width (W) | 1450 mm / 57 inches |
| Height (H) | 1960 mm / 77 inches |
| Back drive control* | VFD |
