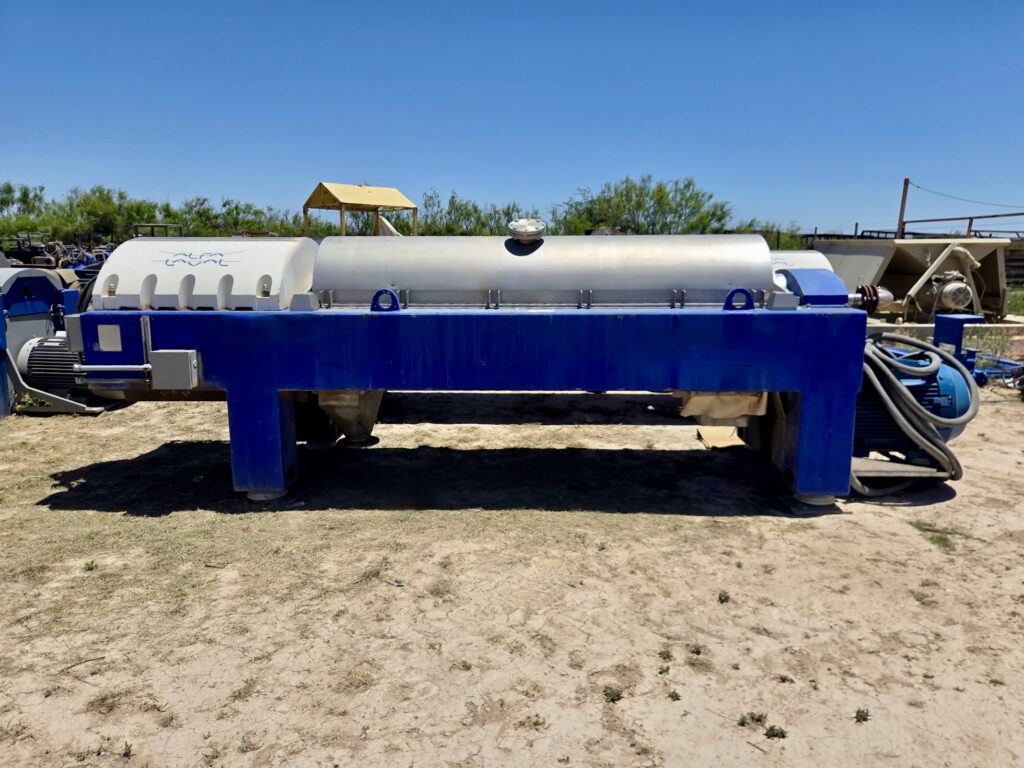

NX-944 31G (23” Bowl)

Purpose-built for Lynx-class dewatering jobs, this separator’s extended bowl gives crews the retention time needed for drier solids, without the footprint of a larger, harder-to-place machine.

  • Reduces disposal costs by producing drier, more consistent cake through extended bowl retention time
  • Protects downstream handling equipment with more thoroughly dewatered solids
  • Enhances research outcomes through precise material separation and recovery
  • Maintains reliable separation performance across changing feed conditions
  • Lowers total equipment costs by right-sizing capacity without moving up to a larger unit
See more details

Talk to Sales

Aux Equipment

Technical Specifications

Our expert team understands the ins and outs of fluid and solid separation processes, allowing us to bring together the right centrifuge configuration for any application. Review the NX-944 31G Technical Specifications below to see if it’s the right fit for your needs.







Typical solids capacity 12 t/h
Bowl diameter 574 mm / 22.6 inches
Bowl length 2438 mm / 96 inches
Bowl speed (maximum) 2900 rpm
G-force (maximum) 2699 G
Gross weight 7000 kg / 15400 lbs
Length (L) 5400 mm / 212.6 inces
Width (W) 1300 mm / 51.2 inches
Height (H) 1570 mm / 61.8 inches
Back drive control* CS and VFD
Main drive motor 150 hp
Back drive motor 30 hp
Hydraulic capacity 180 m³/h / 793 GPM
Centrifuge, VFD and Pump Power Requirements 200 – 250 amps 480v
