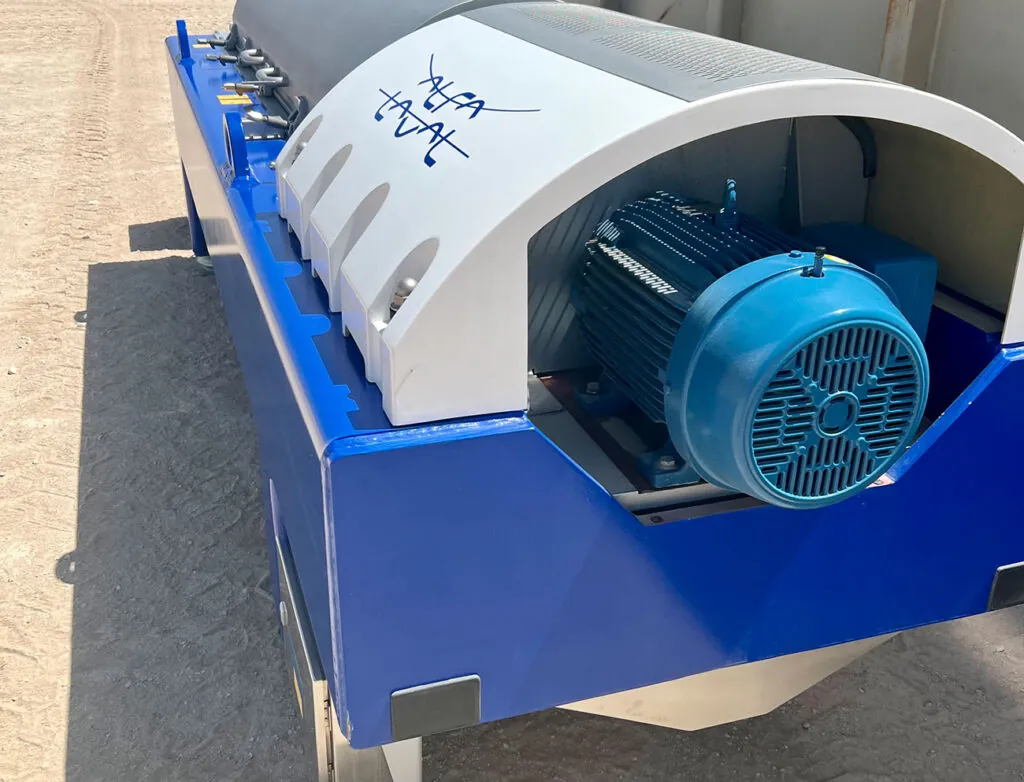

Our expert team understands the ins and outs of fluid and solid separation processes, allowing us to bring together the right centrifuge configuration for any application. Review the Lynx 35 Three-Phase Technical Specifications below to see if it’s the right fit for your needs.
| Typical solids capacity | 12 t/h |
|---|---|
| Bowl diameter | 480 mm / 18.9 inches |
| Bowl length | 2034 mm / 80.1 inches |
| Bowl speed (maximum) | 3650 rpm |
| G-force (maximum) | 3581 G |
| Gross weight | 4800 kg / 9920 lbs |
| Length (L) | 5135 mm / 202.2 inches |
| Width (W) | 1190 mm / 46.9 inches |
| Height (H) | 1325 mm / 52.2 inches |
| Back drive control* | CS and VFD |
| Main drive motor | 125 hp |
| Back drive motor | 20 hp |
| Hydraulic capacity | 120 m³/h / 528 GPM |
| Centrifuge, VFD and Pump Power Requirements | 200 amps 480v |
