G2-115
Roll over to zoom in

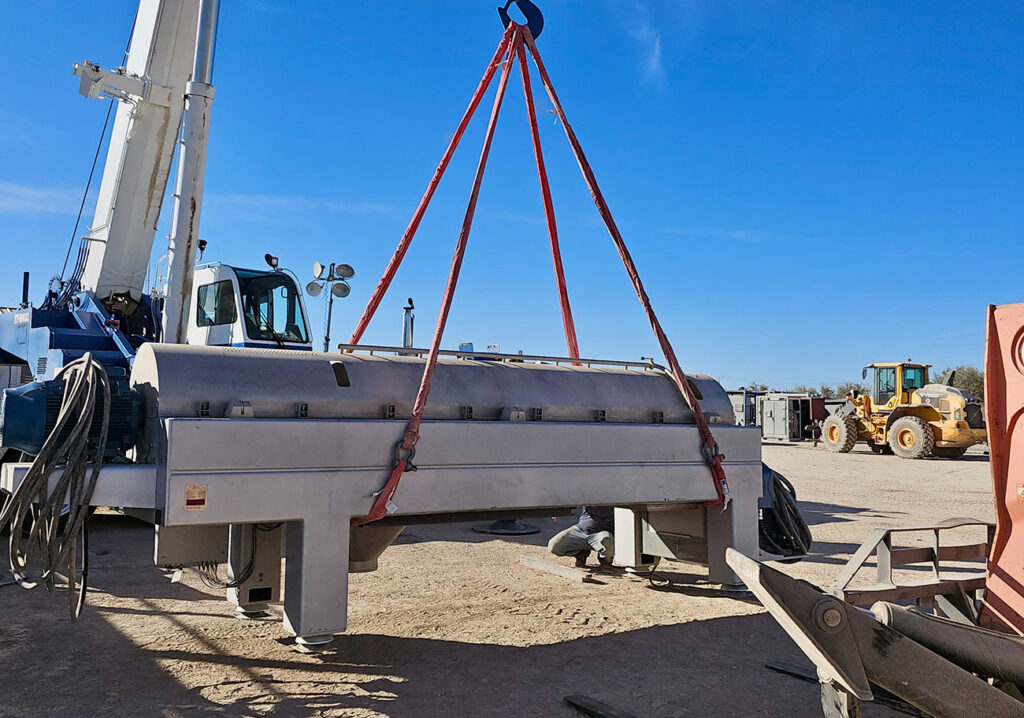

G2-115 (26” Bowl)

Engineered for sites where a full power upgrade isn’t in the budget, this separator delivers Lynx 65-class separation on a smaller electrical service without the wait on infrastructure work.

  • Cuts electrical infrastructure costs by running heavy-duty separation on a smaller power service
  • Adapts to unpredictable feed variations while maintaining consistent separation performance
  • Reduces disposal costs by producing drier, more consistent cake using a combination of a medium pitch beech and a baffle disc
  • Withstands abrasive, high-solids material without sacrificing separation force
See more details

Talk to Sales

CALL
EMAIL

Aux Equipment

Stands

Pumps

All Aux Equipment

Technical Specifications

Our expert team understands the ins and outs of fluid and solid separation processes, allowing us to bring together the right centrifuge configuration for any application. Review the G2-115 Technical Specifications below to see if it’s the right fit for your needs.







Typical solids capacity 20 t/h
Bowl diameter 650 mm / 25.6 inches
Bowl length 2565 mm / 101 inches
Bowl speed (maximum) 2925 rpm
G-force (maximum) 3108 G
Gross weight 6500 kg / 14300 lbs
Length (L) 6450 mm / 253.9 inches
Width (W) 1450 mm / 57.1 inches
Height (H) 1834 mm / 72.2 inches
Back drive control* CS and VFD
Main drive motor 150 hp
Back drive motor 30 hp
Hydraulic capacity 250 m³/h / 1,101 GPM
Centrifuge, VFD and Pump Power Requirements 200 – 250 amps 480v
